by ada ( Liège - Belgique )
spider
- Description:
- The spider part for the control of the inclination of the heliostat
- Tags:
- heliostat, model 50cm
| Target | URL |
|---|---|
| UI | https://charlyoleg2.github.io/parametrix/heliostat/spider |
| Sources | https://github.com/charlyoleg2/parametrix |
| npm package | https://www.npmjs.com/package/designix |
| npx cli | https://www.npmjs.com/package/designix-cli |
| npx UI-server | https://www.npmjs.com/package/designix-uis |
| Maker repo | https://github.com/charlyoleg2/heliostat_model_50cm |
| File | Type | Size (Bytes) | |||
|---|---|---|---|---|---|

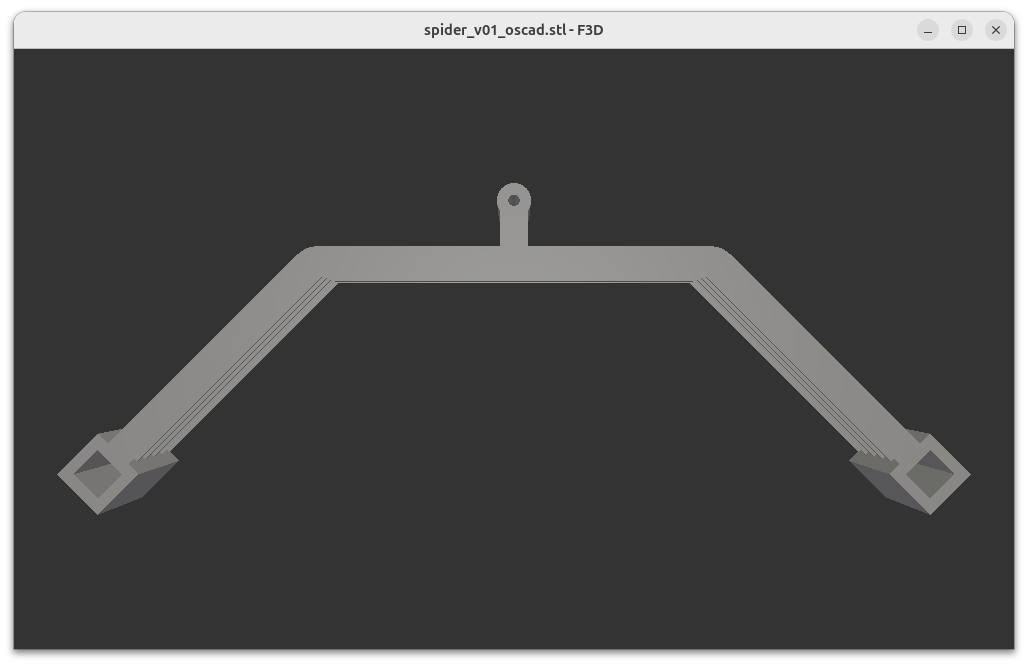

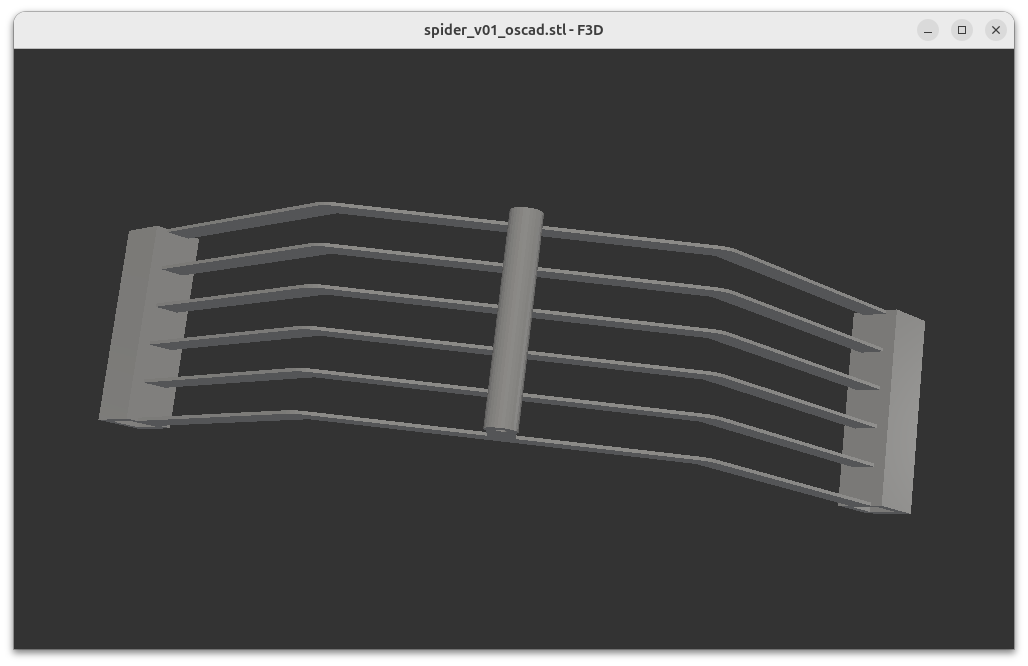

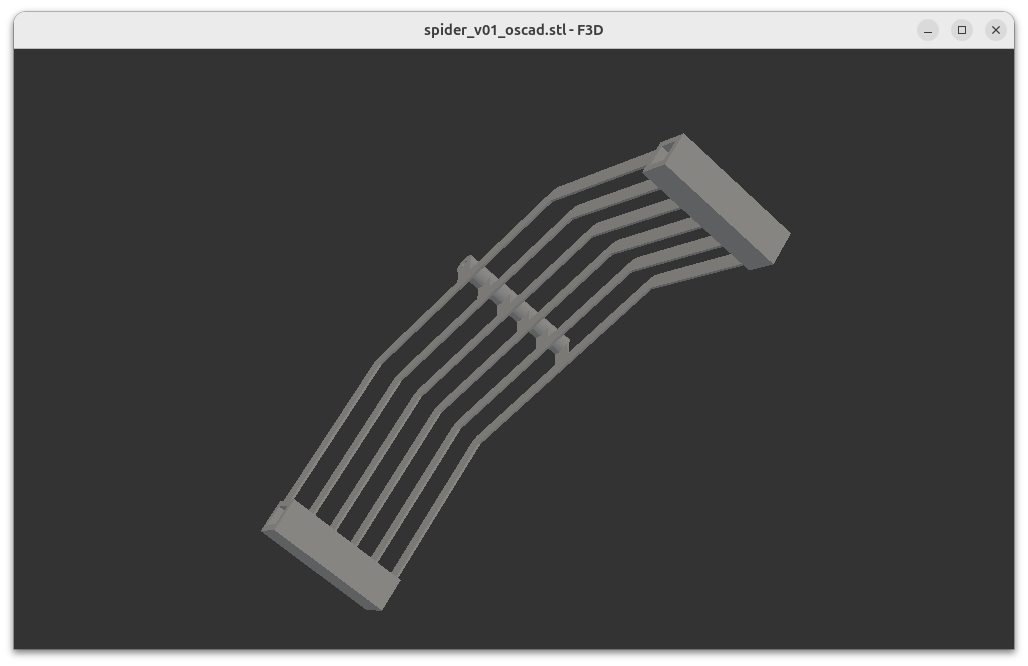

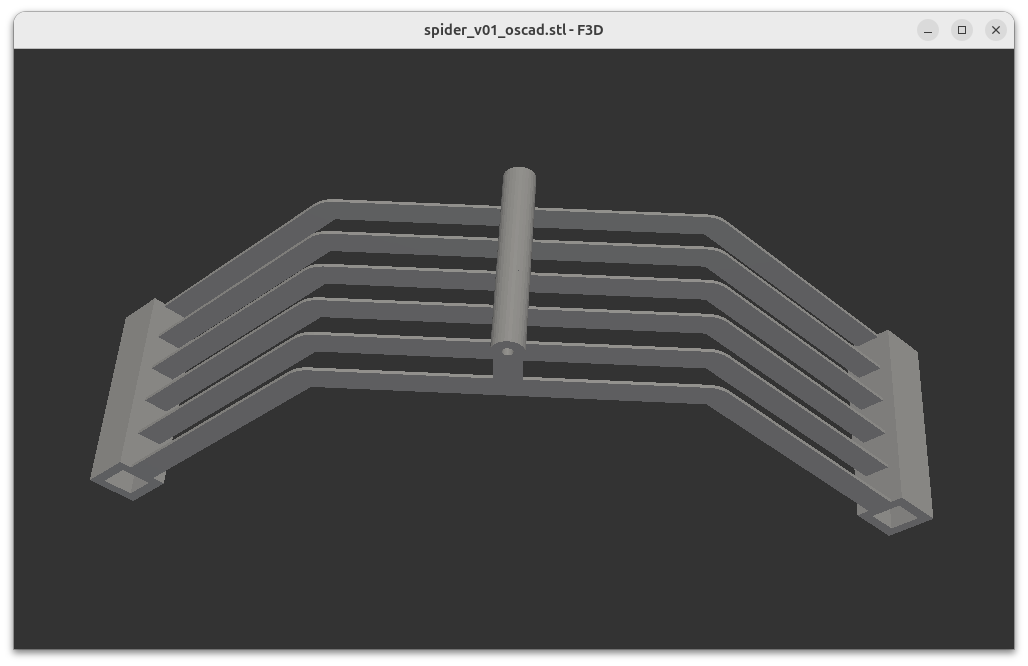

| spider_v01_oscad.stl | 3d- stl | 438453 | raw | download | |
| spider_v01_jscad.stl | 3d- stl | 84 | raw | download | |
| spider_v01_fc.stl | 3d- stl | 1221500 | raw | download | |
| spider_v01_faceTube.svg | 2d- svg | 879 | raw | download | |
| spider_v01_faceTube.dxf | 2d- dxf | 1212 | raw | download | |
| spider_v01_faceLegs.svg | 2d- svg | 585 | raw | download | |
| spider_v01_faceLegs.dxf | 2d- dxf | 1033 | raw | download | |
| spider_v01_faceBody.svg | 2d- svg | 89 | raw | download | |
| spider_v01_faceBody.dxf | 2d- dxf | 36 | raw | download | |
| spider_v01.scad | 5-script- scad | 6361 | raw | download | |
| spider_v01.py | 5-script- pyFreecad | 9249 | raw | download | |
| spider_v01.pax.json | 4-pax- paxJson | 11585 | raw | download | |
| spider_v01.log.txt | 1-log- txtLog | 109 | raw | download | |
| spider_v01.js | 5-script- jsCad | 6707 | raw | download | |
| px_spider_v01.json | 0-params- pxJson | 299 | raw | download |
